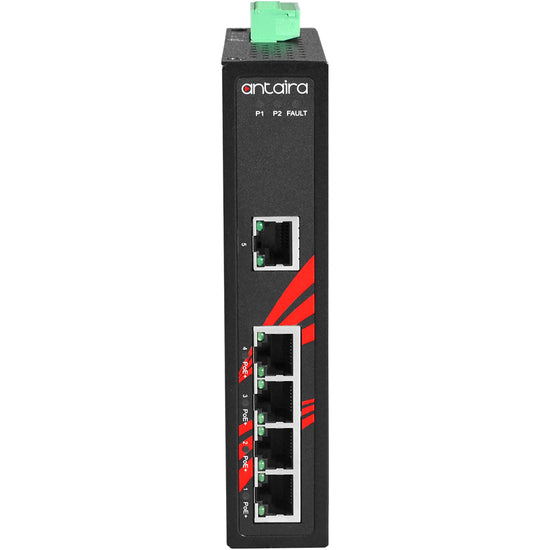

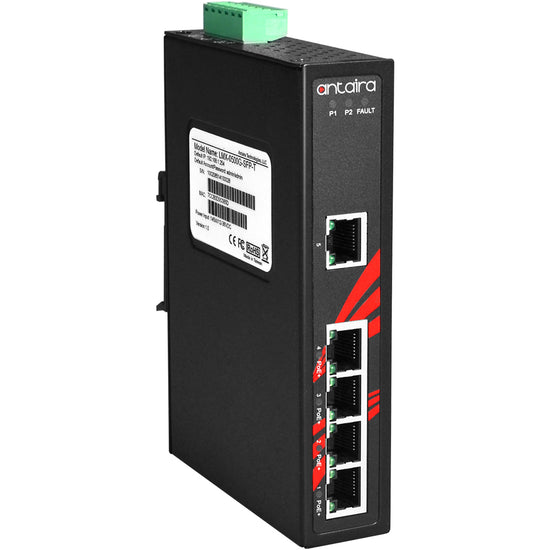

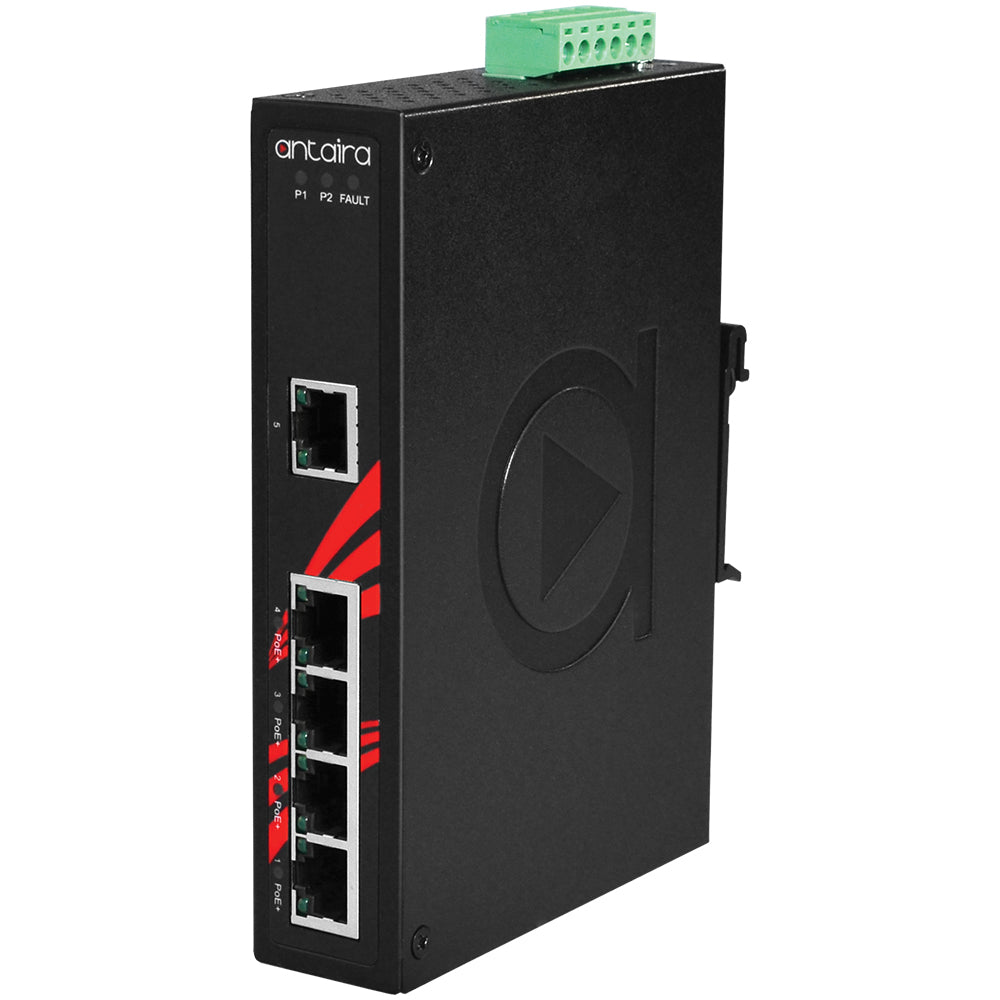

5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx Antaira Technologies LNP-0500G

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

LNP-0500G

5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, 4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx.



by Antaira Technologies
Save 25% Save 25%
£357.00
£357.00 - £357.00
£357.00
£267.75
£267.75 - £267.75
£267.75

Antaira Technologies Price promotion contact us for volume discounts

Warranty and Satisfaction Guaranteed

All Antaira Technologies Products shall be free from manufacturing defects in materials and workmanship for a period of five (5) years.

Every sale is backed by Antaira Technologies 45-Day Satisfaction Guaranteed. If for any reason you are unsatisfied with the purchasing experience or their expectations were not met, Antaira will correct the problem within 45 days of the purchase date or give a full refund. Contact us for details.

Product Specification Table

Features:

Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Ethernet Port, Auto MDI

Store-and-Forward Switching Architecture

10Gbps Back-Plane (Switching Fabric)

8K MAC Address Table

10.0Kbytes Jumbo Frame Support

Surge Protection 2,000 VDC Support

ESD Protection 6,000 VDC Support

UL Class I, Division 2 Certified

Redundant Power Input Design: 48~55VDC

Built-in 1 Relay Output for Power Failure Warning

IP30 Rugged Metal Case Design

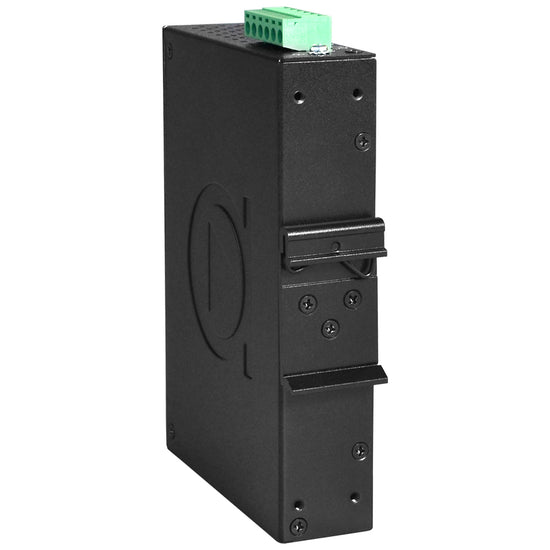

DIN-Rail and Wall Mount Support Included

Operating Temp. - STD: -10~70C

5-Year Warranty

Downloads:

Product Datasheet

Product Manual

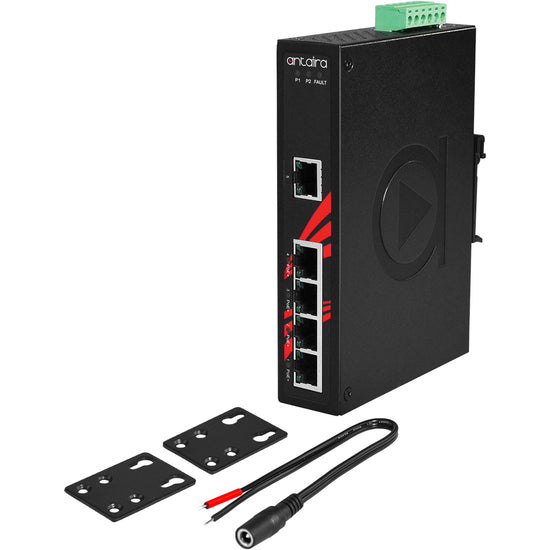

Included:

1 - LNP-0500G

1 - DC cable –18 AWG to DC Jack 5.5x2.1mm

2 - Wall Mounting Brackets and Screws

Antaira Technologies is a leading developer and manufacturer that provides high-quality industrial networking and communication product solutions that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs.
