Video SDI SFP Modules

Switch SFP have developed four 3G SDI Video SFP modules for Transmission and Receiver for 1080P 60HZ video for optical video transmission which are compatible for use in Yellobrik and Series 5000 products.


These SFP modules are 100% compatible with the original Lynx Technik Yellobrik products and is MSA Pinout Compliant.


A range of fibre optic SFP modules which may be fitted to Yellobriks equipped with an SFP cage. They provide single mode or multimode fibre extension for SDI, AES and analogue audio signals, depending on the Yellobrik module.

As the optical channel separation is quite small (20nm), CWDM transmitters and transceivers are specifically designed with a narrow spectral response (transmission peaks) to avoid cross channel interference. Although some non-CWDM SFPs may appear to offer the same wavelengths (1310nm and 1550nm are frequently used for simple two-channel, bi-directional systems), it is vital that CWDM compatible transmitters are used throughout multi-channel CWDM systems. Non-CWDM types have a much less tightly-controlled spectral peak, which is likely to cause adjacent channel interference.

Our compatible Lynx Yellobrik SFP fibre optic CWDM transmitter and transceiver modules may also be used to replace the non-CWDM modules originally supplied in many Yellobriks to extend the original 10km transmission range, or to add a multiplex capability as systems evolve. Please contact Technical Support to check compatibility.


100% Compatible for use with yellobrik products 3Gbit SDI Optical Receiver 1610nm and is This Video SFP is MSA Pinout Compliant
£82.00 - £82.00
£82.00
£82.00 - £82.00
£82.00

OH-TR-C6110-LC

Switch SFP Custom compatible

In stock

3Gbit SDI Optical Transceiver for use with yellobrik products 3Gbit SDI Optical Transceiver this Video SFP is MSA Pinout Compliant • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals• 100% Compatible For use with yellobrik and Series 5000 products• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI• 1610nm wavelength CWDM• Distances up to 10km singlemode.

£82.00 - £82.00
£82.00
£82.00 - £82.00
£82.00
100% Compatible OH-TR-1-LC for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is MSA Pinout Compliant
£82.00 - £82.00
£82.00
£82.00 - £82.00
£82.00

OH-TR-C3110-LC

Switch SFP Custom compatible

In stock

100% Compatible OH-TR-1-LC for use with yellobrik products 3Gbit SDI Optical Transceiver this Video SFP is MSA Pinout Compliant • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals• 100% Compatible For use with yellobrik and Series 5000 products• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI• 1310nm wavelength CWDM• Distances up to 10km singlemode.

£82.00 - £82.00
£82.00
£82.00 - £82.00
£82.00
£194.00 - £194.00
£194.00
£194.00 - £194.00
£194.00

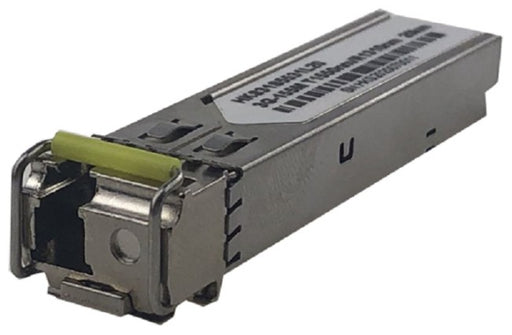

OH-BD-1-1550-LC

Switch SFP Custom compatible

In stock

100% Compatible OH-BD-1-1550-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver 3Gbit SDI Bidirectional Optical Transceiver this Video SFP is MSA Pinout Compliant This SFP is typically used in simple WDM closed loop point to point applications and is intended to be paired with the OH-BD-1-1310-LC-C SFP at the other end of the fibre link.

£194.00 - £194.00
£194.00
£194.00 - £194.00
£194.00
£194.00 - £194.00
£194.00
£194.00 - £194.00
£194.00

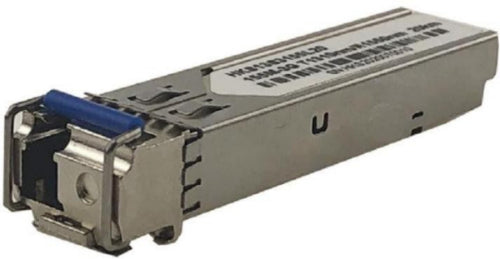

OH-BD-1-1310-LC

Switch SFP Custom compatible

In stock

100% Compatible OH-BD-1-1310-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver 3Gbit SDI Bidirectional Optical Transceiver this Video SFP is MSA Pinout Compliant This SFP is typically used in simple WDM closed loop point to point applications and is intended to be paired with the OH-BD-1-1550-LC-C SFP at the other end of the fibre link.

£194.00 - £194.00
£194.00
£194.00 - £194.00
£194.00
100% Compatible OH-TX-1-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is MSA Pinout Compliant
£88.60 - £88.60
£88.60
£88.60 - £88.60
£88.60

OH-TX-1-LC

Switch SFP Custom compatible

In stock

100% Compatible OH-TX-1-LC-C for use with yellobrik products 3Gbit SDI Optical Transmitter only this Video SFP is MSA Pinout Compliant • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals• 100% Compatible For use with yellobrik and Series 5000 products• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI• 1310nm wavelength (non CWDM)• Distances up to 20km** (singlemode).

£88.60 - £88.60
£88.60
£88.60 - £88.60
£88.60
100% Compatible OH-RX-1-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is MSA Pinout Compliant
£88.60 - £88.60
£88.60
£88.60 - £88.60
£88.60

OH-RX-1-LC

Switch SFP Custom compatible

In stock

100% Compatible OH-RX-1-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is MSA Pinout Compliant • SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals• 100% Compatible For use with yellobrik and Series 5000 products• up to 20 km transmission• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI• Support for all wavelengths between 1260nm and 1620nm.
