OH-RX-1-LC
100% Compatible OH-RX-1-LC-C for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is NON-MSA Pinout but they are compatible with MSA devices.
• SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals
• 100% Compatible For use with yellobrik and Series 5000 products
• up to 20 km transmission
• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Support for all wavelengths between 1260nm and 1620nm.
• Pluggable and hot swappable
• LC connectors
• Lead free and RoHS compliant

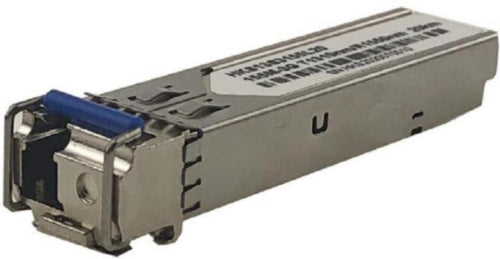

Switch SFP part OH-RX-1-LC-C SDI optical receiver is an SFP module for LYNX Technik yellobrik and Series 5000 products. This module facilitates the conversion of the SDI optical signal into an electrical signal for further processing within these products. Support is provided for all wavelengths between 1260 and 1620nm according to ITU-T G694.2 (18 wavelengths) The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.
Connector Type_Single LC, Distance_20km, Fiber Mode_Single mode, Transmission_Receiver only for 1260nm and 1620nm
