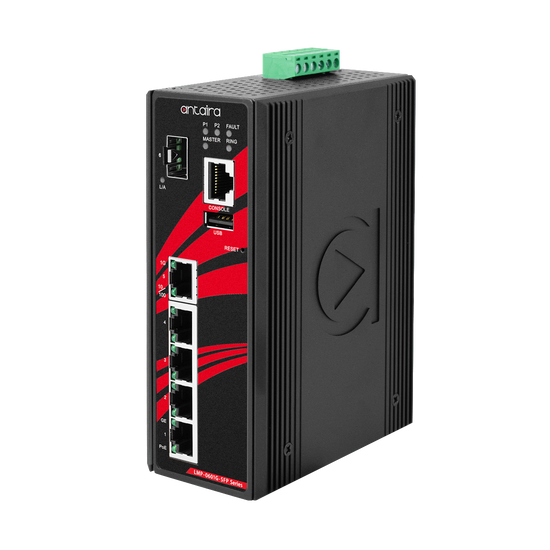

LMP-0601G-SFP-24-V2 6-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 1*100/1000 SFP Slot, 12~55VDC Power Input;

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

LMP-0601G-SFP-V2

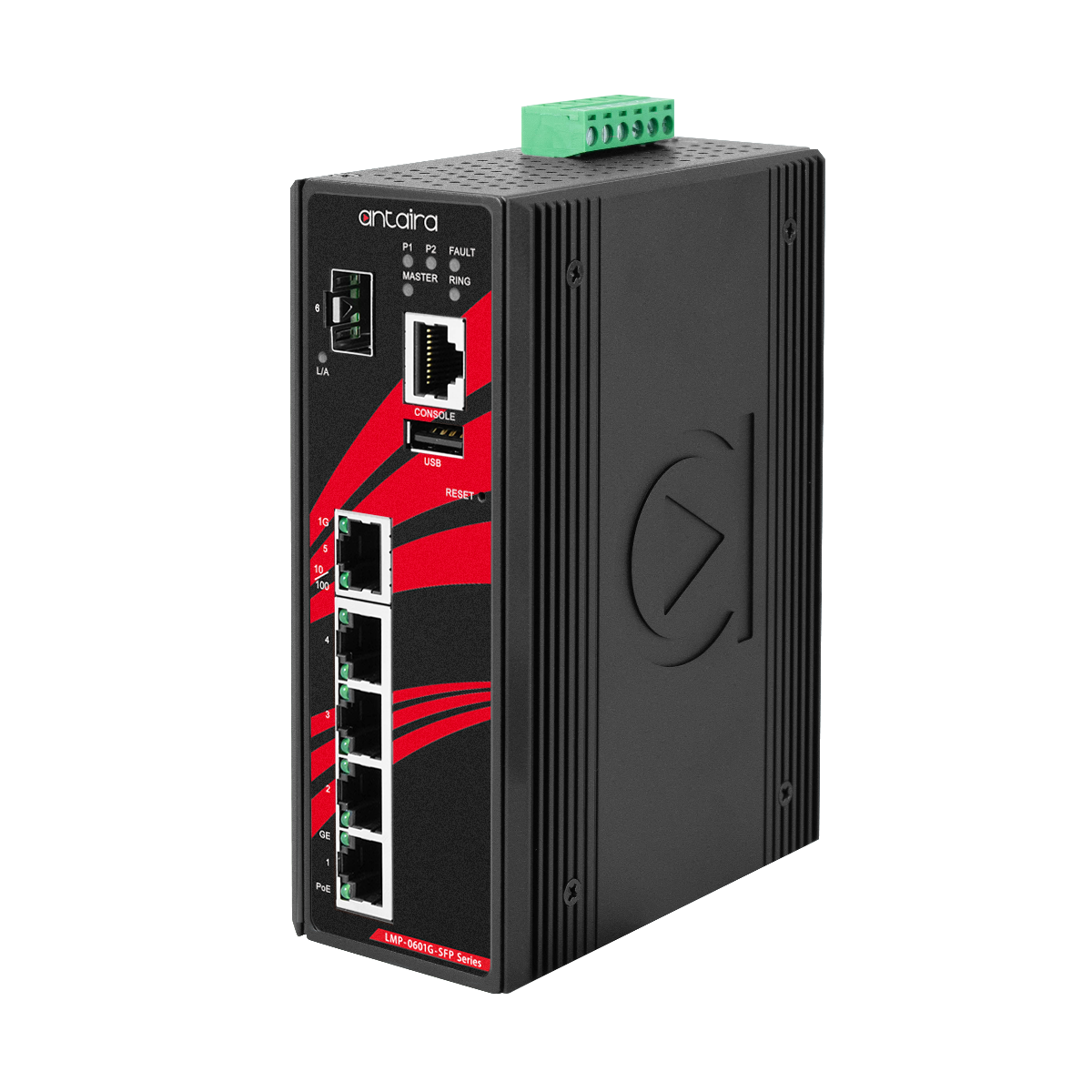

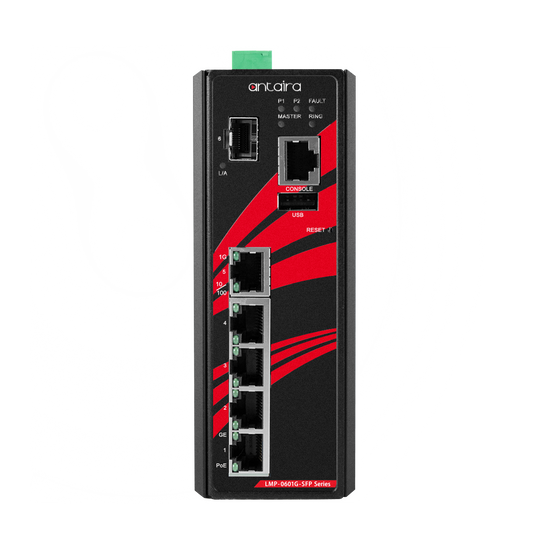

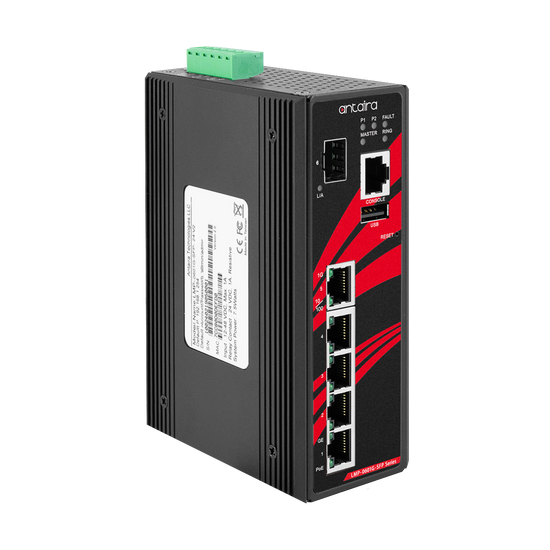

LMP-0601G-SFP-V2 6-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 1*100/1000 SFP Slot; 48~55VDC Power Input; Version 2 Hardware.



by Antaira Technologies
Save 25% Save 25%
$1,164.00
$1,164.00 - $1,164.00
$1,164.00
$873.00
$873.00 - $873.00
$873.00

Antaira Technologies Price promotion contact us for volume discounts

Warranty and Satisfaction Guaranteed

All Antaira Technologies Products shall be free from manufacturing defects in materials and workmanship for a period of five (5) years.

Every sale is backed by Antaira Technologies 45-Day Satisfaction Guaranteed. If for any reason you are unsatisfied with the purchasing experience or their expectations were not met, Antaira will correct the problem within 45 days of the purchase date or give a full refund. Contact us for details.

Product Specification Table

Features:
  • Supports 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 1*10/100/1000Tx, and 1*100/1000 SFP Slot
  • Network Redundancy Support: RSTP/MSTP, and TG.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c

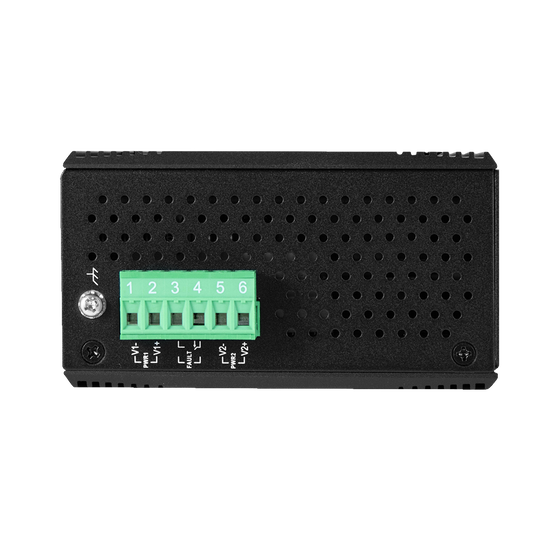

  • Power Input: 48~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection

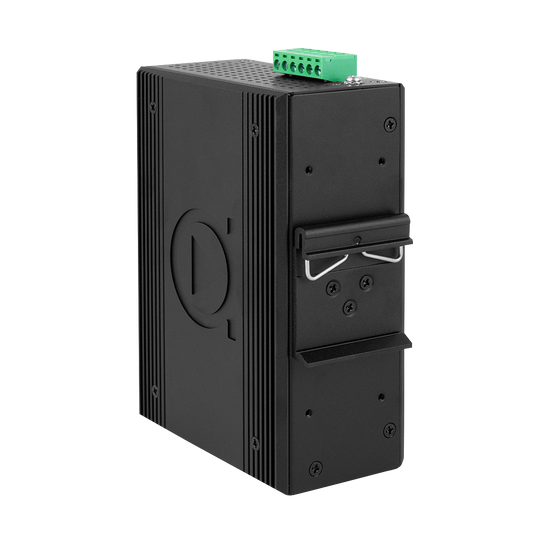

  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – STD: -10°C to 70°C
  • 5-Year Warranty
Downloads:

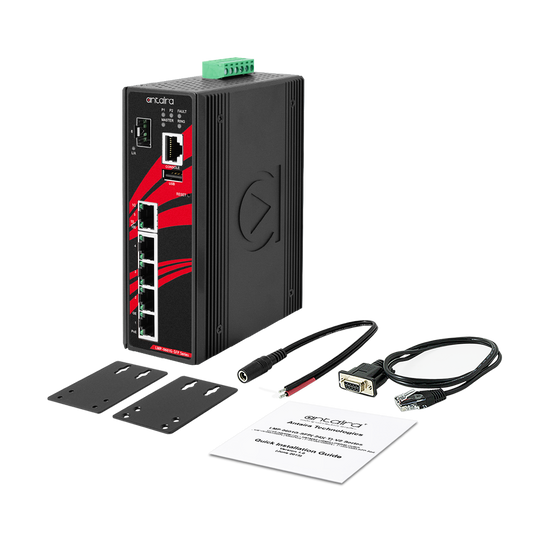

Included:
  • 1 - Quick Installation Guide
  • 1 - LMP-0601G-SFP-V2
  • 1 - Wall mounting bracket set with screws
  • 1 - RJ45 to DB9 Serial Console cable
  • 1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
  • 1 - RJ45 dust cover set

Antaira Technologies is a leading developer and manufacturer that provides high-quality industrial networking and communication product solutions that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs.
