Antaira Technologies LNX-0501G-SFP 5-Port Industrial Unmanaged Ethernet Switch, 4-Port 10/100/1000Tx and 1*100/1000 SFP slot.

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

LNX-0501G-SFP

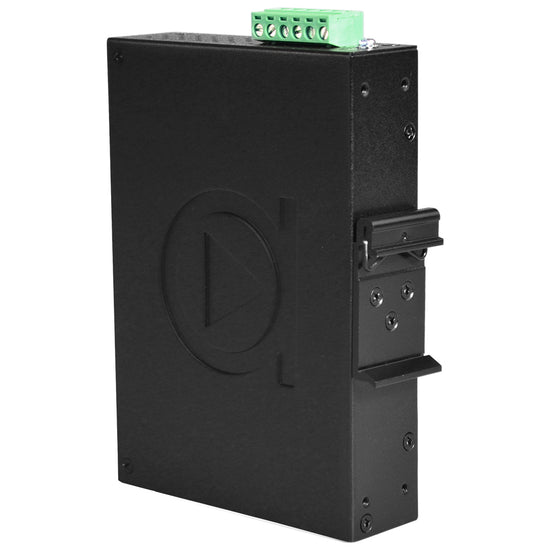

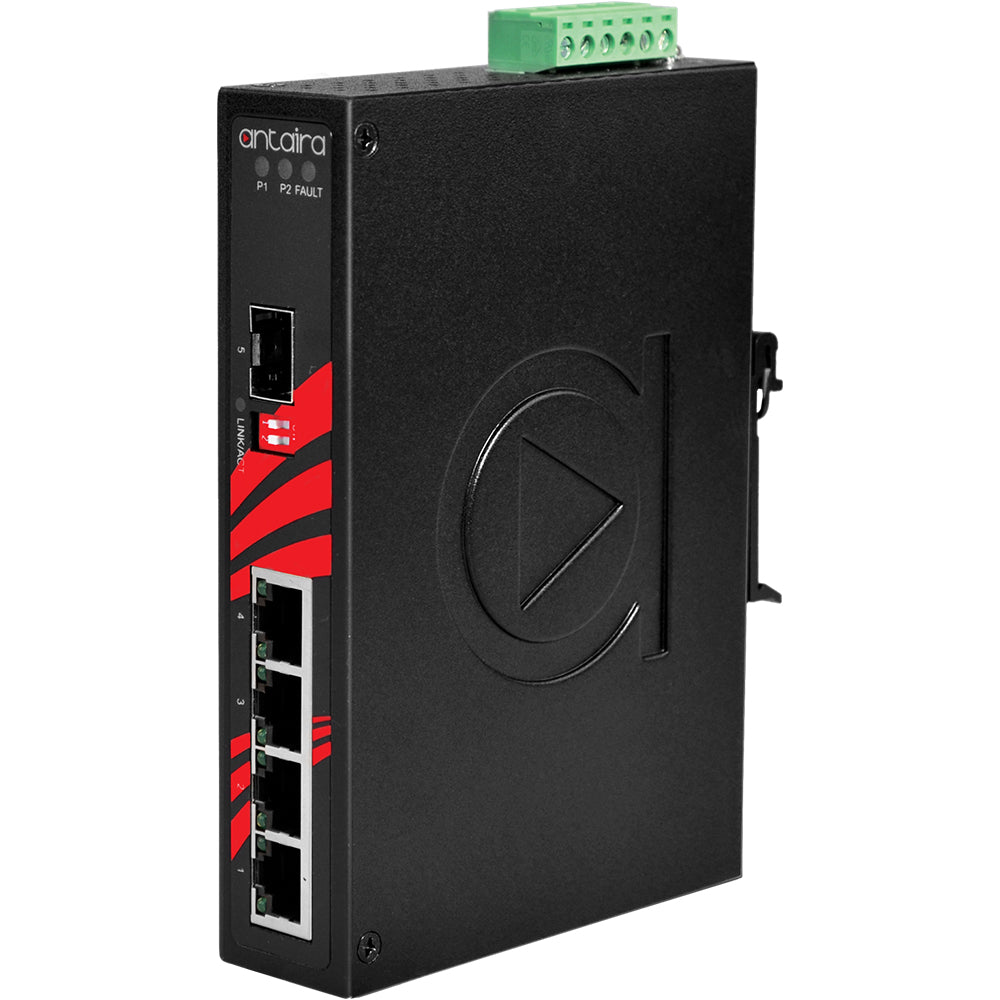

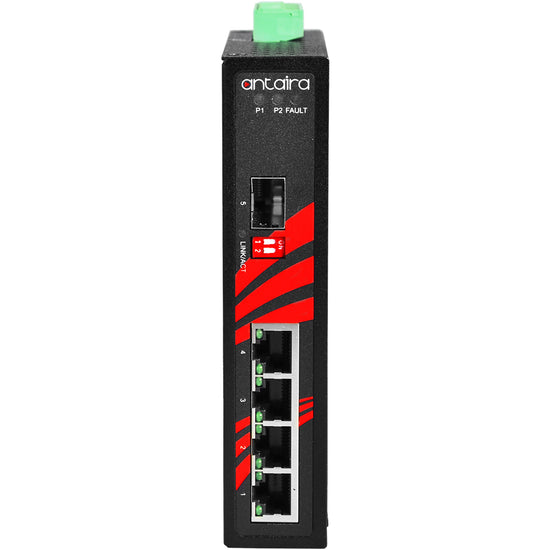

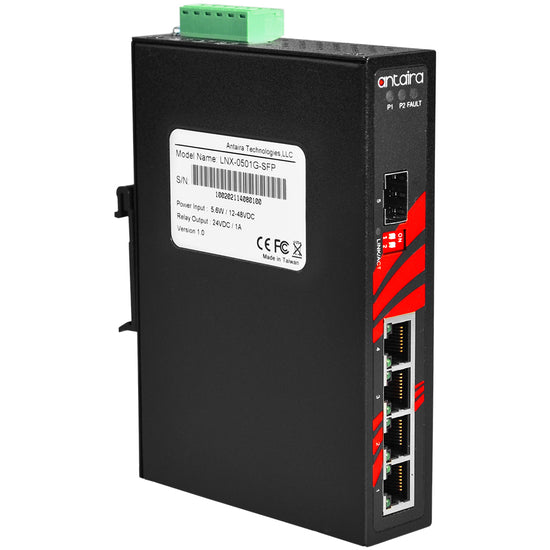

LNX-0501G-SFP  5-Port Industrial Unmanaged Ethernet Switch, 4-Port 10/100/1000Tx and 1*100/1000 SFP slot.




by Antaira Technologies
Save 25% Save 25%
£305.00
£305.00 - £305.00
£305.00
£228.75
£228.75 - £228.75
£228.75

Antaira Technologies Price promotion contact us for volume discounts

Warranty and Satisfaction Guaranteed

All Antaira Technologies Products shall be free from manufacturing defects in materials and workmanship for a period of five (5) years.

Every sale is backed by Antaira Technologies 45-Day Satisfaction Guaranteed. If for any reason you are unsatisfied with the purchasing experience or their expectations were not met, Antaira will correct the problem within 45 days of the purchase date or give a full refund. Contact us for details.

Product Specification Table

Features:

Network Broadcast Storm Protection

4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot

Supports Auto MDI/MDI-X Function

Store-and-Forward Switching Architecture

10Gbps Back-Plane (Switching Fabric)

8K MAC Address Table

9.6Kbytes Jumbo Frame Support

Surge Protection: 3,000 VDC Support

ESD Protection: 6,000 VDC Support

UL Class I, Division 2 Certified

Redundant Power Input Design – 12~48VDC

Built-in 1 Relay Output for Port Break Alarm

IP30 Rugged Aluminum Case Design

DIN-Rail and Wall Mount Support

Operating Temperature Range - STD: -10° to 70° C

5-Year Warranty

Downloads:

Product Datasheet

Product Manual

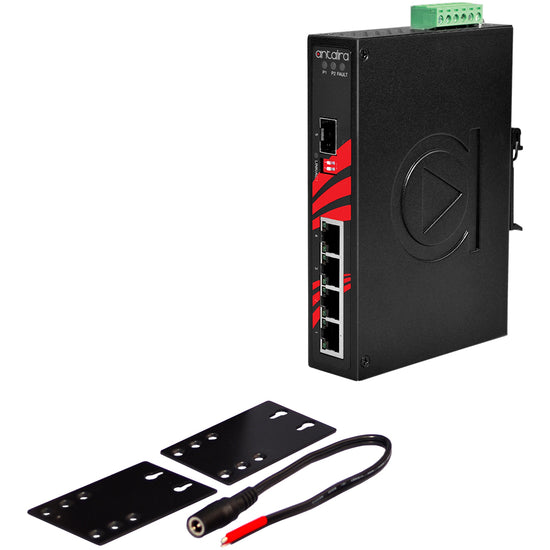

Included:

1 x LNX-0501G-SFP

2 x Wall Mounting Bracket and Screws

1 x DC cable –18 AWG & DC Jack 5.5x2.1mm

Antaira Technologies is a leading developer and manufacturer that provides high-quality industrial networking and communication product solutions that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs.
