Antaira Technologies LNX-1002G-SFP 10-Port Industrial Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx + 2*100/1000 SFP Slots.

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

LNX-1002G-SFP-T

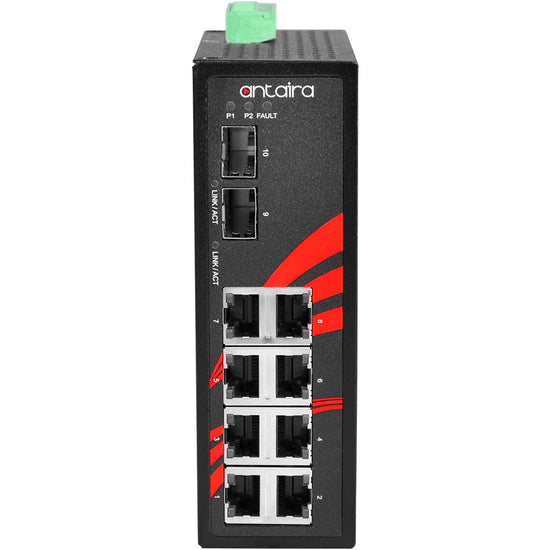

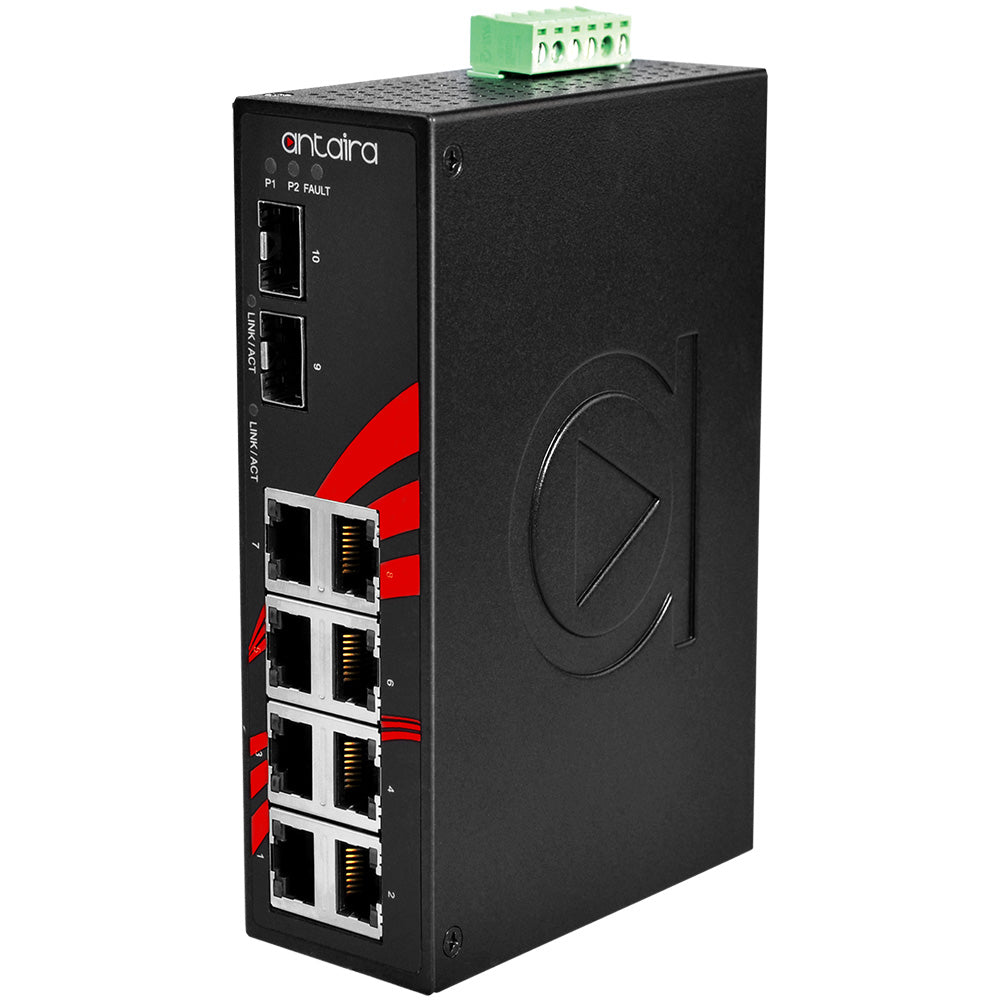

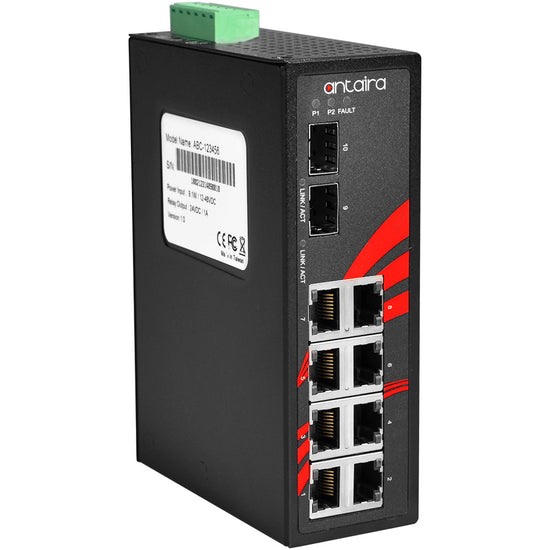

LNX-1002G-SFP-T 10-Port Industrial Gigabit Unmanaged Ethernet Switch, 8*10/100/1000Tx + 2*100/1000 SFP Slots operating temperature of -40ºC to 75ºC.



by Antaira Technologies
£586.00 - £586.00
£586.00
£586.00 - £586.00
£586.00

Warranty and Satisfaction Guaranteed

All Antaira Technologies Products shall be free from manufacturing defects in materials and workmanship for a period of five (5) years.

Every sale is backed by Antaira Technologies 45-Day Satisfaction Guaranteed. If for any reason you are unsatisfied with the purchasing experience or their expectations were not met, Antaira will correct the problem within 45 days of the purchase date or give a full refund. Contact us for details.

Product Specification Table

Features:

Supports 8-Port 10/100/1000Tx + 2-Port 100/1000 SFP

Supports Auto MDI/MDI-X Function

Store-and-Forward Switching Architecture

20Gbps Back-Plane (Switching Fabric)

8K MAC Address Table

9.6Kbytes Jumbo Frame Support

Surge Protection: 2,000 VDC Support

ESD Protection: 6,000 VDC Support

UL Class I, Division 2 Certified

Redundant Power Input Design: 12~48VDC

Built-in 1 Relay Output for Power Failure Detection

IP30 Rugged Metal Case Design

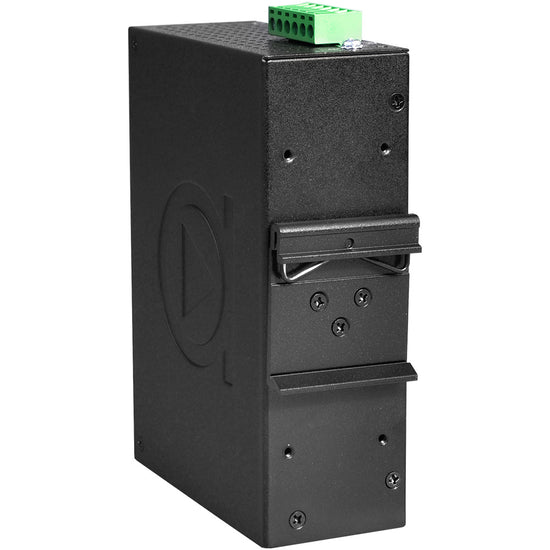

DIN-Rail and Wall Mount Support

Operating Temperature Range - STD: -10° to 70° C

5-Year Warranty

Downloads:

Hardware Manual

Product Datasheet

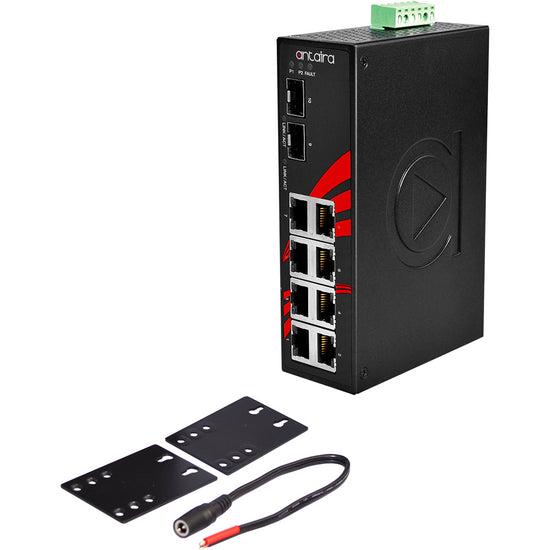

Included:

1 x LNX-1002G-SFP

1 x DC cable –18 AWG & DC Jack 5.5x2.1mm

2 x Wall Mounting Bracket and Screws

Compatibility:
Original new

Antaira Technologies is a leading developer and manufacturer that provides high-quality industrial networking and communication product solutions that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs.
