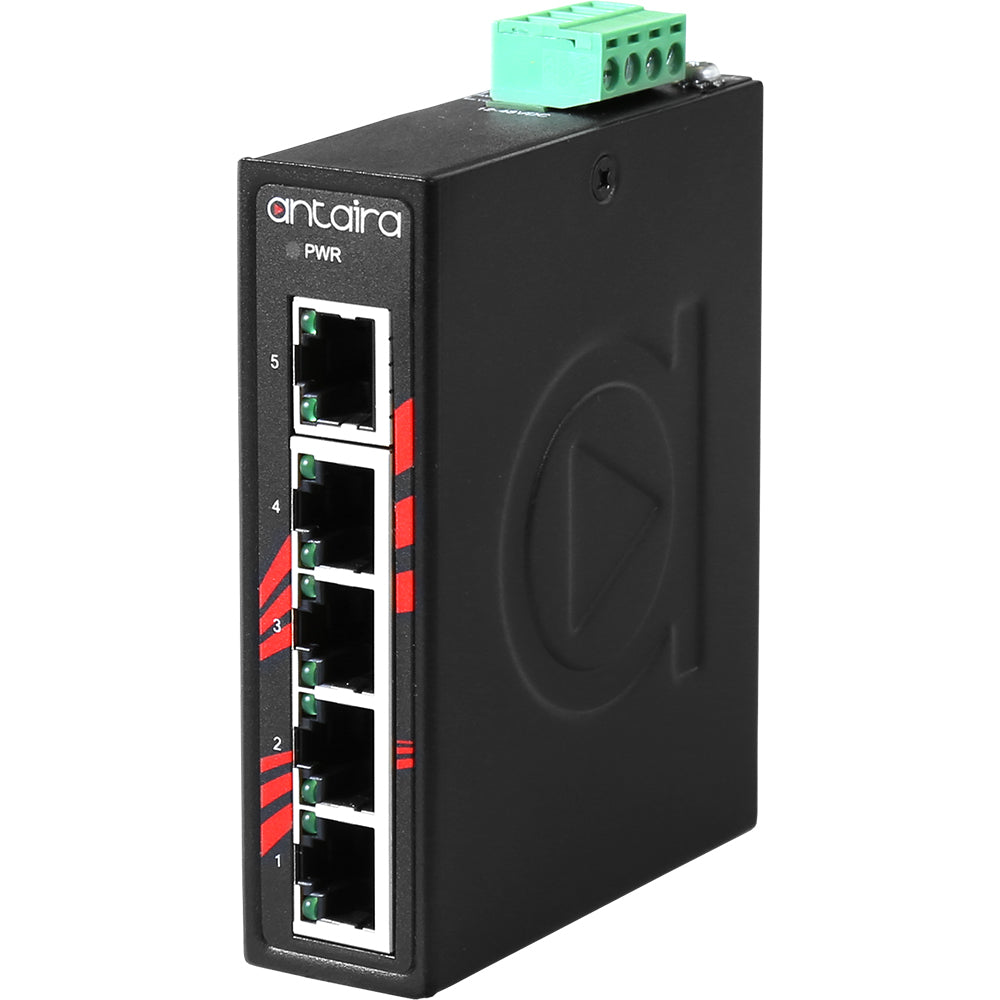

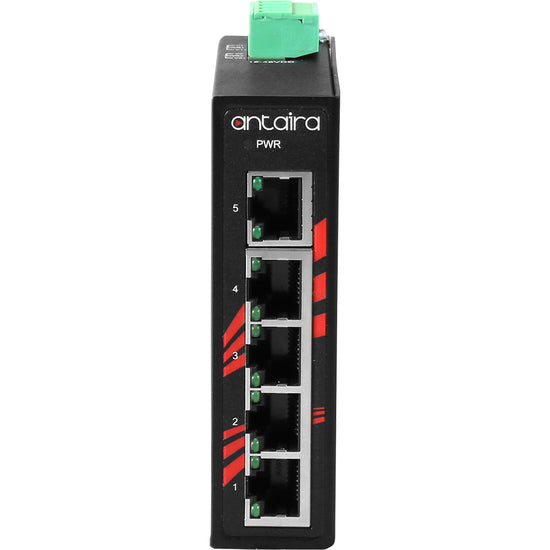

LNX-C500-CC Antaira Technologies LNX-C500-CC Compact 5-Port Industrial Unmanaged Ethernet Switch, 5*10/100TX with Conformal Coating Antaira Technologies Compact design LNX-C500

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

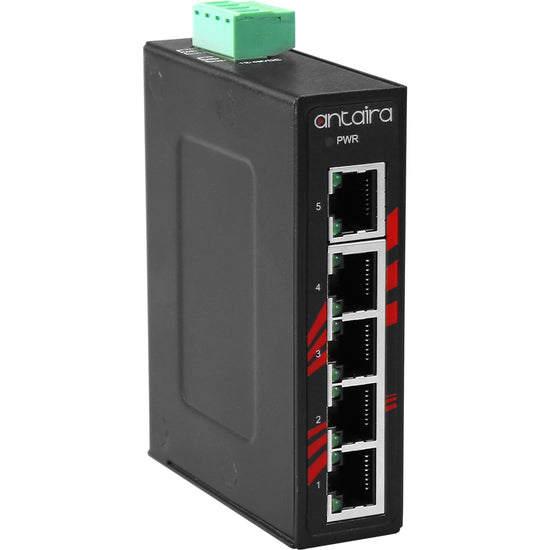

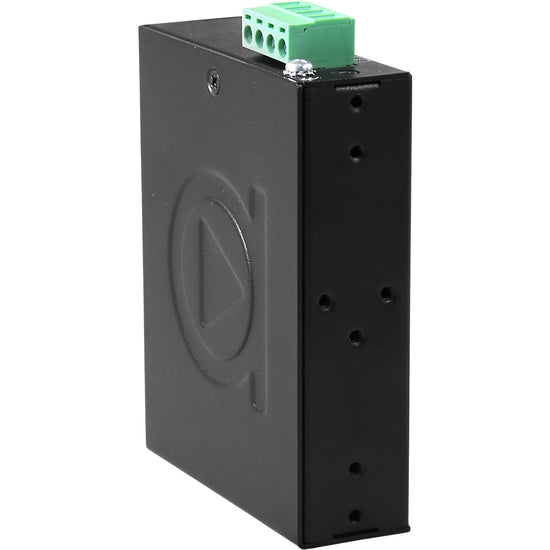

LNX-C500-T-CC

LNX-C500-T-CC Compact 5-Port Industrial Unmanaged Ethernet Switch, 5*10/100TX with Conformal Coating operating temperature of -40ºC to 75ºC.



by Antaira Technologies
Save 25% Save 25%
£166.00
£166.00 - £166.00
£166.00
£124.50
£124.50 - £124.50
£124.50

Antaira Technologies Price promotion contact us for volume discounts

Warranty and Satisfaction Guaranteed

All Antaira Technologies Products shall be free from manufacturing defects in materials and workmanship for a period of five (5) years.

Every sale is backed by Antaira Technologies 45-Day Satisfaction Guaranteed. If for any reason you are unsatisfied with the purchasing experience or their expectations were not met, Antaira will correct the problem within 45 days of the purchase date or give a full refund. Contact us for details.

Product Specification Table

Features:

Conformal Coating

Compact Industrial Grade Design

NEMA TS1/TS2

Supports 5*10/100Tx

Supports Auto MDI/MDI-X Function

Store-and-Forward Switching Architecture

8K MAC Address Table

Surge Protection: 2,000 VDC Support

ESD Protection: 6,000 VDC Support

Redundant Power Input Design: 12~48VDC

IP30 Rugged Metal Case Design

DIN-Rail and Wall Mount Support

Extended Operating Temperature Range: -40° to 75° C

5-Year Warranty

Downloads:

Product Manual

Product Datasheet

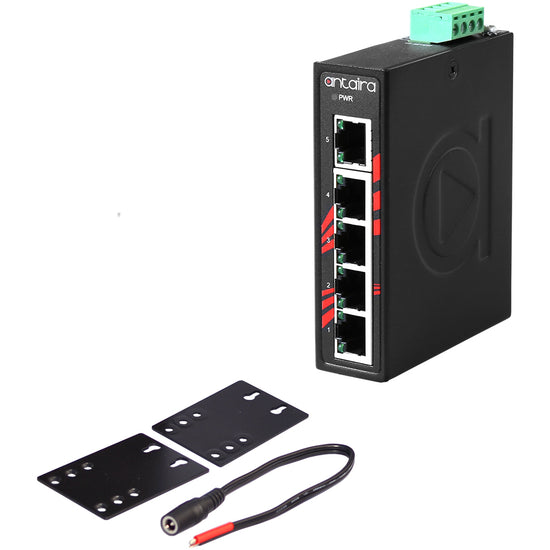

Included:

LNX-C500-T-CC

DC Cable - 18 AWG with DC jack 5.5x2.1mm

DIN-Rail and Wall Mounting Brackets

Antaira Technologies is a leading developer and manufacturer that provides high-quality industrial networking and communication product solutions that feature reliable Ethernet infrastructures, extended temperature tolerance, and rugged enclosure designs.
