100% Compatible OH-TR-1-LC for use with yellobrik products 3Gbit SDI Optical Receiver and is This Video SFP is MSA Pinout Compliant

Unsure or Need Help?

Utilise our years of experience and get specialist advice from our knowledgable UK based support team.

01285 700 750 sales@switchsfp.com

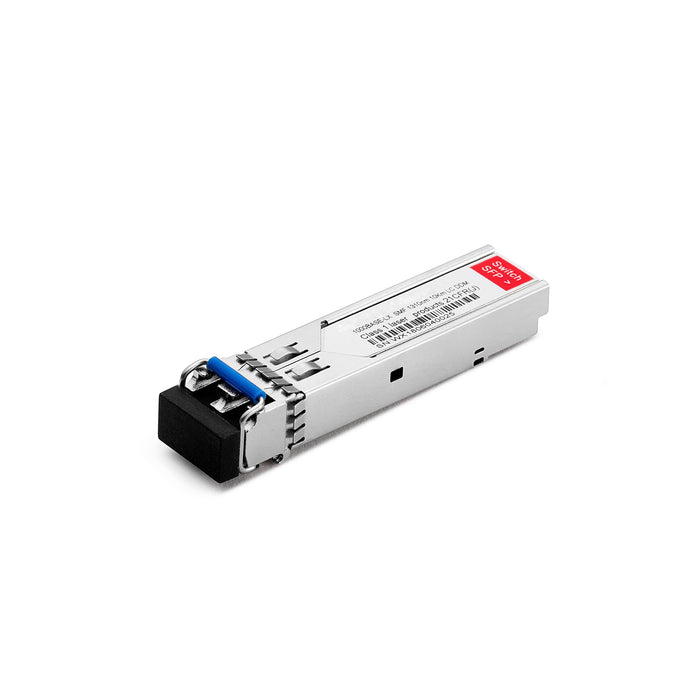

OH-TR-C3110-LC

100% Compatible OH-TR-1-LC for use with yellobrik products 3Gbit SDI Optical Transceiver this Video SFP is MSA Pinout Compliant

• SDI multi-rate optical receiver for 3G-SDI, HD-SDI and SD-SDI signals
• 100% Compatible For use with yellobrik and Series 5000 products
• Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• 1310nm wavelength CWDM
• Distances up to 10km singlemode.
• Pluggable and hot swappable
• Dual LC connectors
• Lead free and RoHS compliant

Switch SFP part OH-TR-C3110-LC SDI optical transmitter is an integrated part or plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber. Wavelength is a fixed 1310nm CWDM and suitable for distances up to 10km. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

Connector Type_Dual LC, Distance_10km, Fiber Mode_Single mode, Transmission_1310nm
by Switch SFP Custom
£82.00 - £82.00
£82.00
£82.00 - £82.00
£82.00

We back our products with a Lifetime Warranty as Standard

All products are covered with a lifetime replacement warranty and our 60 day NO QUIBBLE RETURN policy.

Product Specification Table

Features:

This Video SFP is MSA Pinout Compliant

Compatible with Part Number:
LYNX Technik Yellobrik part OH-TR-1-LC
Form Type:
3G SDI SFP
Data Rate:
270Mbit / 1.485Gbit and 2.97Gbit SDI
Wavelength:
1310nm
Distance:
10km
Connector:
Dual LC
Fiber Type:
Single mode
Operating Temperature:
0~70 C

Switch SFP have developed a range of SDI optical transceiver modules for broadcast video transmission applications over single-mode fibre (SMF). Our SDI range of video SFP's cover 3G/6G/12G and are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M, and SMPTE 424M serial rates. The Video SDI range can have MSA compliant Pin definition or not please contact us for any specific requirement.
