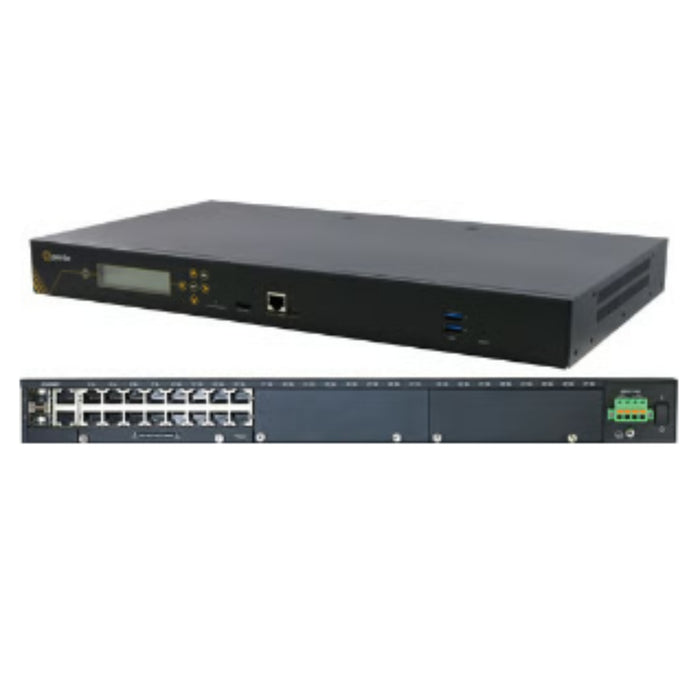

Perle Systems 04033960 IOLAN SCG18 R-D Console Server
IOLAN SCG18 R-D Console Server.
The IOLAN SCG18 R-D is a high-performance modular console server featuring 16 RS232 RJ45 interfaces with software-configurable Cisco pinouts, 2 USB ports, a front panel display with keyboard, and dual auto-sensing 10/100/1000 Ethernet combo ports (RJ45 or SFP). It also includes a Micro SD card slot, Micro USB and RS232 RJ45 console admin ports, and supports IPv4/IPv6 routing (RIP, OSPF, BGP), Zero Touch Provisioning (ZTP), REST/Python APIs, and cloud hosting. Security features include advanced data encryption, user authentication, event management, COM port redirection, and 15 kV ESD protection. The system is expandable using IOLAN G16 cards and features dual-feed 24–60VDC power for reliable out-of-band operation.
Perle IOLAN SCG Console Servers provide secure remote console management for devices with RS232 RJ45 or USB console ports, including routers, switches, firewalls, servers, PBXs, network storage devices, and security appliances over IP networks. The modular design allows administrators to mix and match 16-port USB 3.0, RS232 RJ45, or software-selectable RS232/422/485 RJ45 interface modules to scale and customize deployments.
With full routing capabilities (RIP, OSPF, BGP), two-factor authentication (2FA), integrated firewall, advanced failover, and leading-edge encryption, IT administrators can be confident that all console access and network data transmissions remain secure. The dual-feed 48VDC input (24–60VDC range) provides a robust and reliable out-of-band management solution for telecommunications and high-availability environments.
