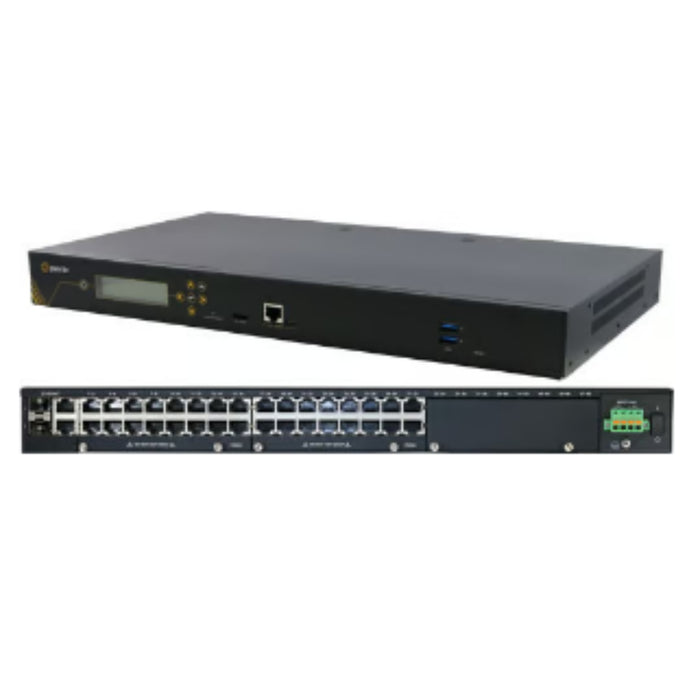

Perle Systems 04034080 IOLAN SCG34 R-D Console Server

Perle IOLAN SCG34 R-D Console Server.

The Perle IOLAN SCG34 R-D is a high-performance console server designed to deliver secure, reliable remote console management for data center and telecommunications environments. It features 32 RS232 RJ45 ports with software-configurable Cisco pinouts, two USB ports, a front-panel display and keyboard, and dual auto-sensing 10/100/1000 Ethernet combo ports supporting either RJ45 or SFP connectivity. Additional interfaces include a microSD card slot, micro-USB and RS232 RJ45 console admin ports, and support for dual-feed 48V DC power (24–60V DC input range) for enhanced reliability.

Built for scalability, the modular IOLAN SCG platform allows users to expand or customize the system using IOLAN G16 interface cards, supporting mix-and-match combinations of 16-port USB 3.0, RS232 RJ45, or software-selectable RS232/422/485 RJ45 modules. The unit also provides 15kV ESD protection, a COM port redirector, and cloud-hosting capabilities.

Advanced networking and security features are integral to the SCG34 R-D, including IPv4/IPv6 routing with RIP, OSPF, and BGP, Zero Touch Provisioning (ZTP), REST and Python APIs, and comprehensive event management. Security is further enhanced through two-factor authentication, integrated firewall services, strong user authentication, advanced encryption, and resilient failover across multiple networks.

The Perle IOLAN SCG Console Servers enable data center managers to securely manage routers, switches, firewalls, servers, PBXs, network storage devices, and other security appliances that use RS232 RJ45 or USB console ports—ensuring safe, dependable out-of-band access across IP networks.
