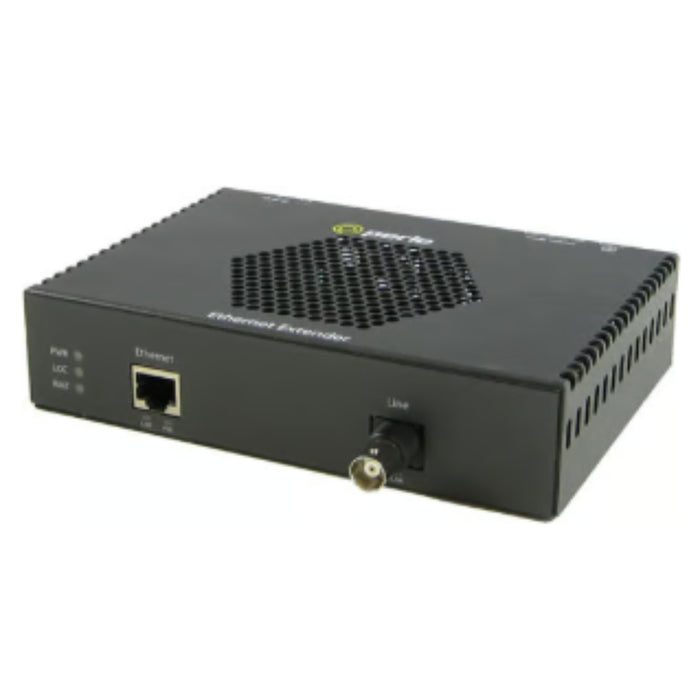

Perle Systems 06004621 eXP-1S1110E-BNC PoE Ethernet Extender
PoE Gigabit Ethernet Extender with BNC (Coax) VDSL2.
The eXP-1S1110E-BNC is a PoE-enabled Gigabit Ethernet extender with one 10/100/1000Base-T (RJ-45) port and a BNC (coax) VDSL2 interlink connector. It supports data transmission distances of up to 10,000 feet (3 km) over single twisted pair (CAT5/6/7), coaxial cable, or existing copper wiring previously used for alarm systems, E1/T1 circuits, RS-232/422/485, CCTV, and CATV applications.
The integrated PoE power controller ensures full compliance with IEEE 802.3af and IEEE 802.3at standards. At the central site, the extender operates as a Powered Device (PD), supporting both end-span and mid-span PSE power sources. At the remote site, it functions as Power Sourcing Equipment (PSE), delivering up to 15.4 W of power to PoE and PoE+ devices such as IP cameras, VoIP phones, and wireless access points. A 48V 65W power adapter is included.
