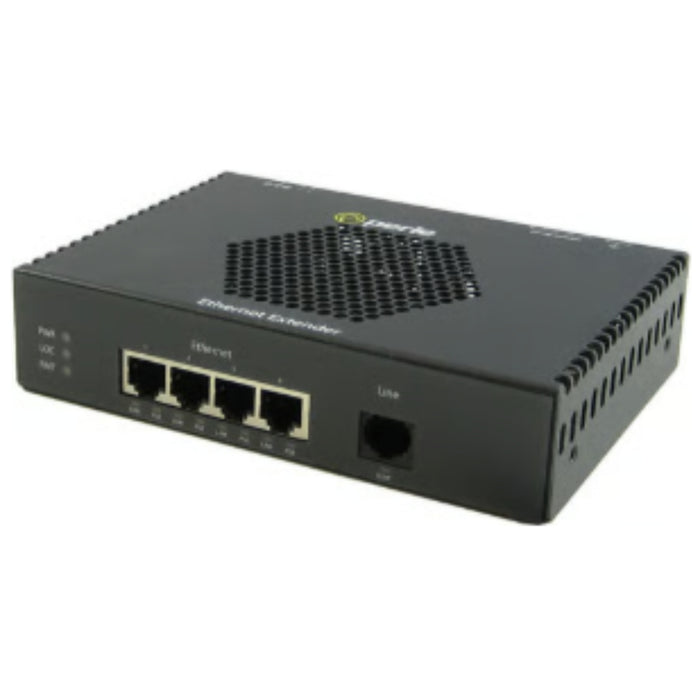

Perle Systems 06004880 eXP-4S110E-RJ-XT PoE Ethernet Extender
Industrial Temperature PoE Fast Ethernet Extender with RJ45 VDSL2.
The eXP-4S110E-RJ-XT is a rugged industrial PoE Fast Ethernet extender featuring four 10/100Base-TX (RJ-45) ports and an RJ45 VDSL2 interlink connector. It supports data transmission over distances of up to 10,000 feet (3 km) using single twisted pair (CAT5/6/7), coaxial cable, or existing copper wiring previously used for alarm systems, E1/T1 circuits, RS-232/422/485, CCTV, and CATV applications.
Designed for extended temperature environments, this industrial extender incorporates an on-board PoE power controller for full compliance with IEEE 802.3af and IEEE 802.3at standards. At the central site, it operates as a Powered Device (PD), supporting both end-span and mid-span PSE power sources. At the remote site, it functions as Power Sourcing Equipment (PSE), delivering up to 15.4 W of power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
