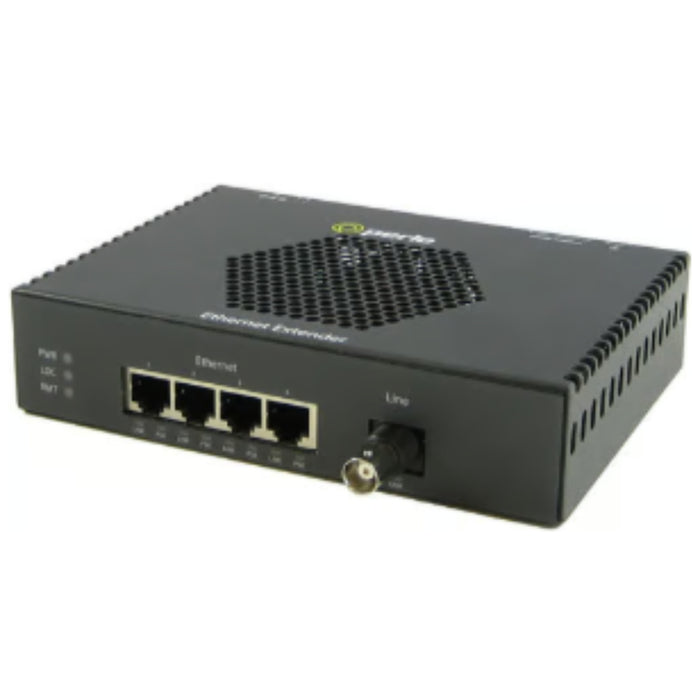

Perle Systems 06004890 eXP-4S110E-BNC-XT PoE Ethernet Extender
Industrial Temperature PoE Fast Ethernet Extender with BNC (Coax) VDSL2.
The eXP-4S110E-BNC-XT is a rugged industrial PoE Fast Ethernet extender featuring four 10/100Base-TX (RJ-45) ports and a BNC (coax) VDSL2 interlink connector. It supports data transmission over distances of up to 10,000 feet (3 km) using single twisted pair (CAT5/6/7), coaxial cable, or existing copper wiring previously used for alarm systems, E1/T1 circuits, RS-232/422/485, CCTV, and CATV applications.
Specifically designed for harsh environments, this industrial extender operates reliably across extended temperature ranges from -40°F to 167°F (-40°C to 75°C). The integrated PoE power controller ensures full compliance with IEEE 802.3af and IEEE 802.3at standards. At the central site, it functions as a Powered Device (PD), supporting both end-span and mid-span PSE power sources, while the remote unit operates as Power Sourcing Equipment (PSE), delivering up to 15.4 W of power to PoE and PoE+ compliant devices such as IP cameras, VoIP phones, and wireless access points.
